Distribution Transformer

Chinese distribution transformers feature pad mounted, pole mounted, and dry type configurations and support different voltage, capacities, and installation requirements, designed for commercial, industrial, and utility applications.

Get a Quote

Resource

Catalogue | Buying Guide

UL certification

SCA certification

CE certification

KEMA certification

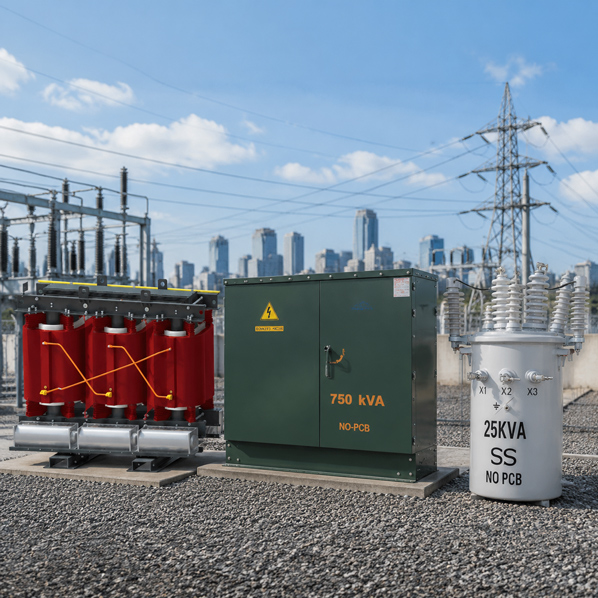

Distribution transformers manufactured in China are available in various configurations, including pad mounted transformers, pole mounted transformers, and dry type transformers, with single phase and three phase versions, capacity options from 10 kVA to 500 kVA, covering popular ratings such as 25 kVA, 100 kVA, 200 kVA, and 250 kVA. We provide customized designs based on different power systems, installation conditions, and project requirements. Whether you need a reliable distribution transformer supplier, high-performance electrical equipment, or a custom transformer solution, our engineering team can deliver the right design to match your operational needs and performance expectations.

Products Display

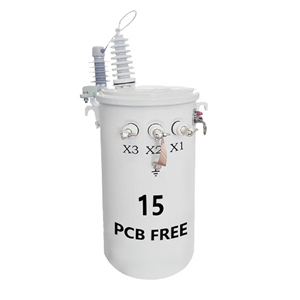

Pole Mounted Distribution Transformer

CSP Type or Conventional Type
5~167 kVA Capacity
Underground Distribution, Outdoor Installation

Pad Mounted Distribution Transformer

1 Phase or 3 Phase
25~250 kVA Capacity
Overhead power distribution, Space-saving installation

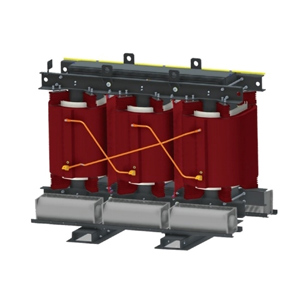

3 Phase Dry Type Distribution Transformer

3 Phase
15000kVA and Below Capacity
Indoor Applications, Low Maintenance

Industrial Facilities

Supplies stable power for factories, plants, and manufacturing systems to ensure operation of equipment.

Energy Systems

Supports solar and other renewable energy projects by connecting generated power.

Commercial Buildings

Provides reliable power distribution for shopping centers, offices, and commercial facilities.

Utility Power Distribution

Used in power grids and distribution networks to step down voltage and deliver stable electricity.

Technical Specifications

Key specifications including rated capacity, rated voltage, frequency, and phase define the distribution transformer’s performance, load capability, voltage conversion requirements, and compatibility with different power distribution systems.

Rated Capacity: Indicates the dist transformer’s rated capacity, defining the maximum apparent power it can safely handle under normal operating conditions.
Rated Voltage: Specifies the primary and secondary voltage levels for efficient voltage conversion and proper connection to the power system.
Frequency: Defines the operating frequency of the transformer, typically 50Hz or 60Hz, to match the requirements of different power grids.
Phase: Determines whether the transformer is designed for single phase (1 phase) or three phase (3 phase) power distribution systems.

Distribution transformer technical specifications

Custom Distribution Transformer

Capacity

Customizable capacity ratings are available to meet different power distribution requirements, from small commercial applications to large industrial projects.

Primary Voltage

Primary voltage levels can be customized according to regional grid standards and specific power system requirements.

Secondary Voltage

Secondary voltage options are adjustable to match the voltage requirements of downstream equipment and end-user applications.

Certification Requirements

ATO transformers can be manufactured according to required international standards and certification requirements, including project-specific compliance needs.

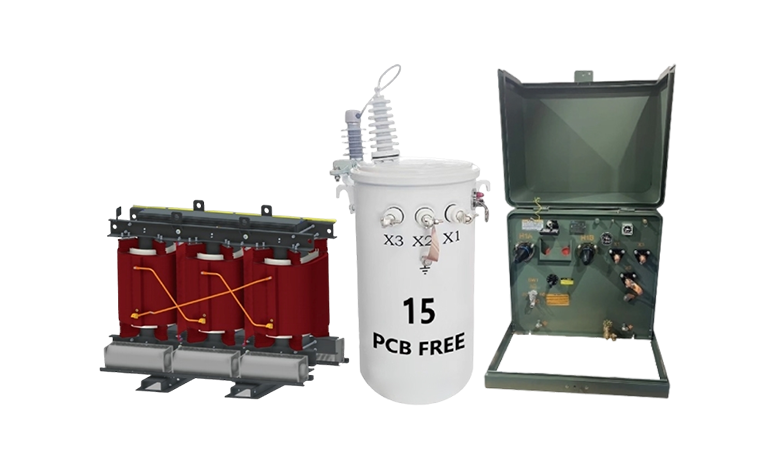

Pad Mounted vs. Pole Mounted vs. Dry Type Transformer

Feature	Pad Mounted Distribution Transformer	Pole Mounted Distribution Transformer	Dry Type Distribution Transformer
Installation	Underground / Ground mounted	Pole mounted / Overhead	Indoor mounted
Applications	Residential, commercial, industrial distribution	Utility networks, rural power systems	Industrial facilities, buildings, renewable energy
Environment	Outdoor	Outdoor	Indoor
Main Benefit	Safe enclosed design and reliable underground distribution	Cost-effective overhead power distribution	Fire-safe and environmentally friendly operation
Cooling	Oil immersed	Oil immersed	Air cooled
Maintenance	Easy inspection and service	Simple utility maintenance	Low maintenance requirement
Custom Options	Capacity, voltage, frequency, phase	Capacity, voltage, installation design	Capacity, voltage, insulation class, enclosure
Ideal For	Underground cable networks	Overhead power systems	Safety-focused indoor applications

FAQs

1. What is a distribution transformer and how does it work?

A distribution transformer is an electrical device used to reduce medium voltage electricity from power distribution networks to a lower voltage level suitable for residential, commercial, and industrial applications. It works by using electromagnetic induction between primary and secondary windings to transfer electrical energy efficiently while maintaining voltage stability.

2. What are the main types of distribution transformers?

The main types of distribution transformers include pad mounted transformers, pole mounted transformers, and dry type distribution transformers. Pad mounted transformers are commonly used in underground power distribution systems, pole mounted transformers are widely applied in overhead power networks, and dry type transformers are preferred for indoor environments where safety and environmental protection are important.

3. Why choose a distribution transformer from an ATO manufacturer?

ATO is a reliable China transformer manufacturer can provide competitive pricing, flexible customization options, and large production capacity for different power distribution requirements. Many Chinese manufacturers follow international quality standards and offer solutions for utilities, contractors, and industrial projects worldwide.

4. How do I select the right distribution transformer for my project?

Selecting the right distribution transformer depends on several factors, including rated capacity, voltage level, installation environment, efficiency requirements, and application conditions. Customers should consider whether they need an outdoor or indoor transformer, oil-immersed or dry-type design, and whether additional features are required for specific operating conditions.

5. What should I consider when buying distribution transformers in bulk?

When purchasing distribution transformers for large projects, it is important to evaluate product quality, technical specifications, delivery capability, and after-sales support. Working with an experienced distribution transformer supplier can help ensure consistent product performance, customized solutions, and reliable supply for utility and industrial applications.

6. Can distribution transformers be customized for different applications?

Yes, distribution transformers can be customized according to different voltage ratings, power capacities, installation environments, and customer requirements. Professional transformer manufacturers can provide customized designs for residential areas, commercial buildings, renewable energy systems, and industrial facilities. For customers requiring large quantities, distribution transformer wholesale options can also provide cost-effective solutions.
